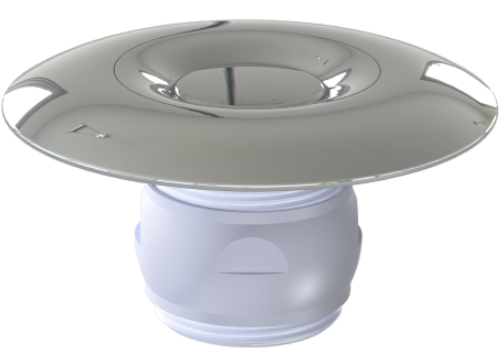

VARIOFLOW360 FLOOR INLET NOZZLE MAXI SERIES | TILED POOLS

Uniform water distribution
Inspired by the shapes of water, the VarioFlow360 floor inlet is a patented, revolutionary product that redefines pool water circulation. Its unrestricted 360° free flow exploits the Coandă effect, generating flows that adhere to the pool floor and reach every corner of the pool, while its refined geometric profile draws the upper fluid layers downward, creating strong passive circulation. The innovative self-regulating variable-flow outlet system maintains a constant outlet velocity as the flow rate changes, making VarioFlow360 ideal also for systems with variable-speed pumps.
Flow coverage up to Ø 5.60 m at a flow rate of 7 m³/h.

The swivel sphere fixing system Ø 63 | PN10 | 1″½, for tiled pools, allows slope variations of ±8° to be managed optimally (swivel sphere SUPPLIED). Simply provide a Ø 63 | PN 10 PVC pipe outlet at the design position: once the building and tiling work is completed, cut the pipe flush and glue the inlet with its swivel sphere directly inside it, adapting it to the slope and any finishing irregularities.
Thanks to the PVC adaptor swivel sphere Ø 75 | PN10 x 1″½, VarioFlow360 can also be installed in existing systems or systems designed with Ø 75 pipes.
Water flow rate: 7 m³/h | Velocity 4 m/s. Minimum water depth for installation: 60 cm.
