WALL RETURN INLET MICRO SERIES | TILED POOLS

Correct water recirculation at every point of the pool is essential to keep the water clear and clean and to reduce the use of chemicals. Modern pools, with their special shapes and wellness areas, require the most even circulation possible: GERIT micro-circulation introduces filtered water in a targeted way, at reduced flow rates, eliminating low-recirculation areas.

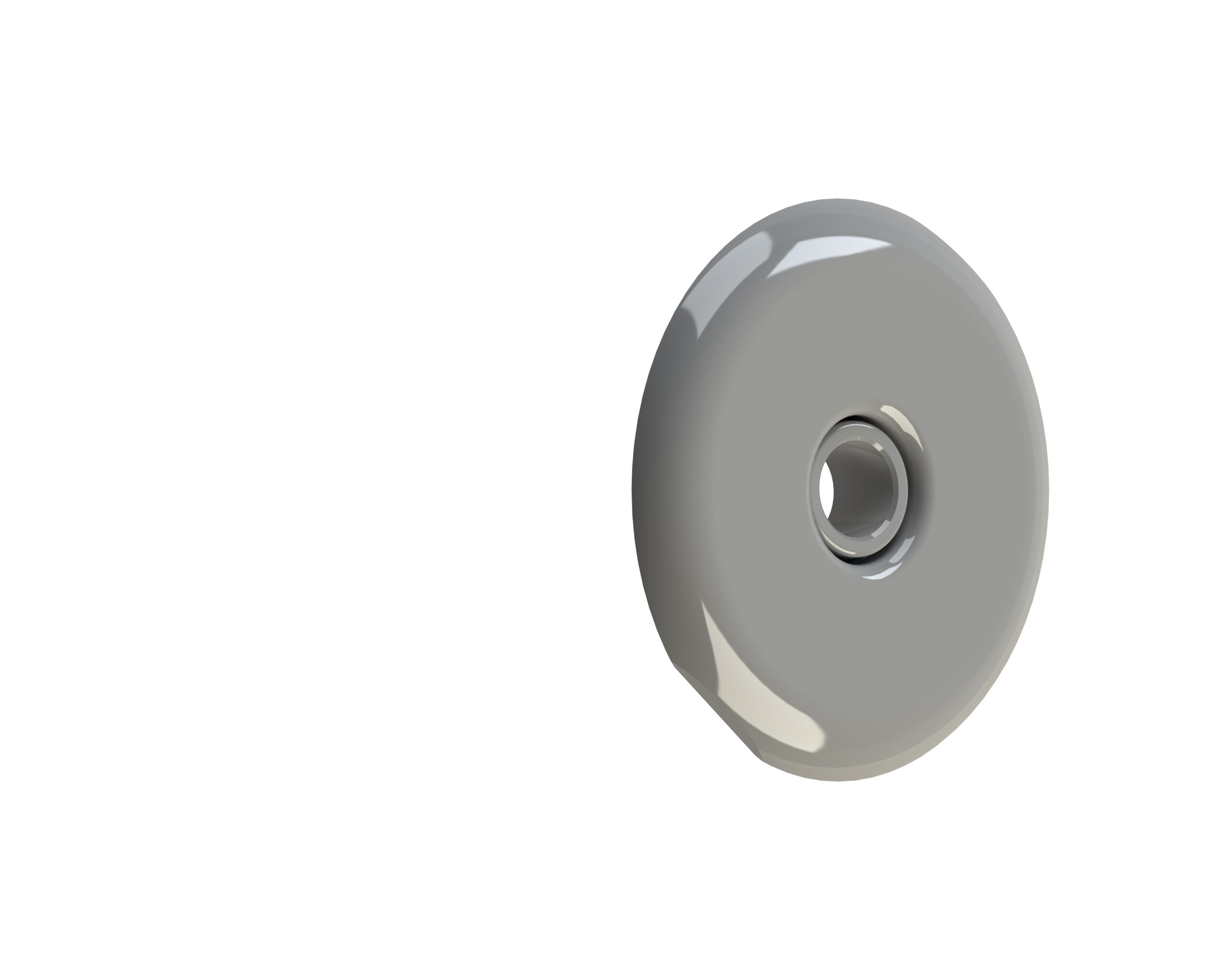

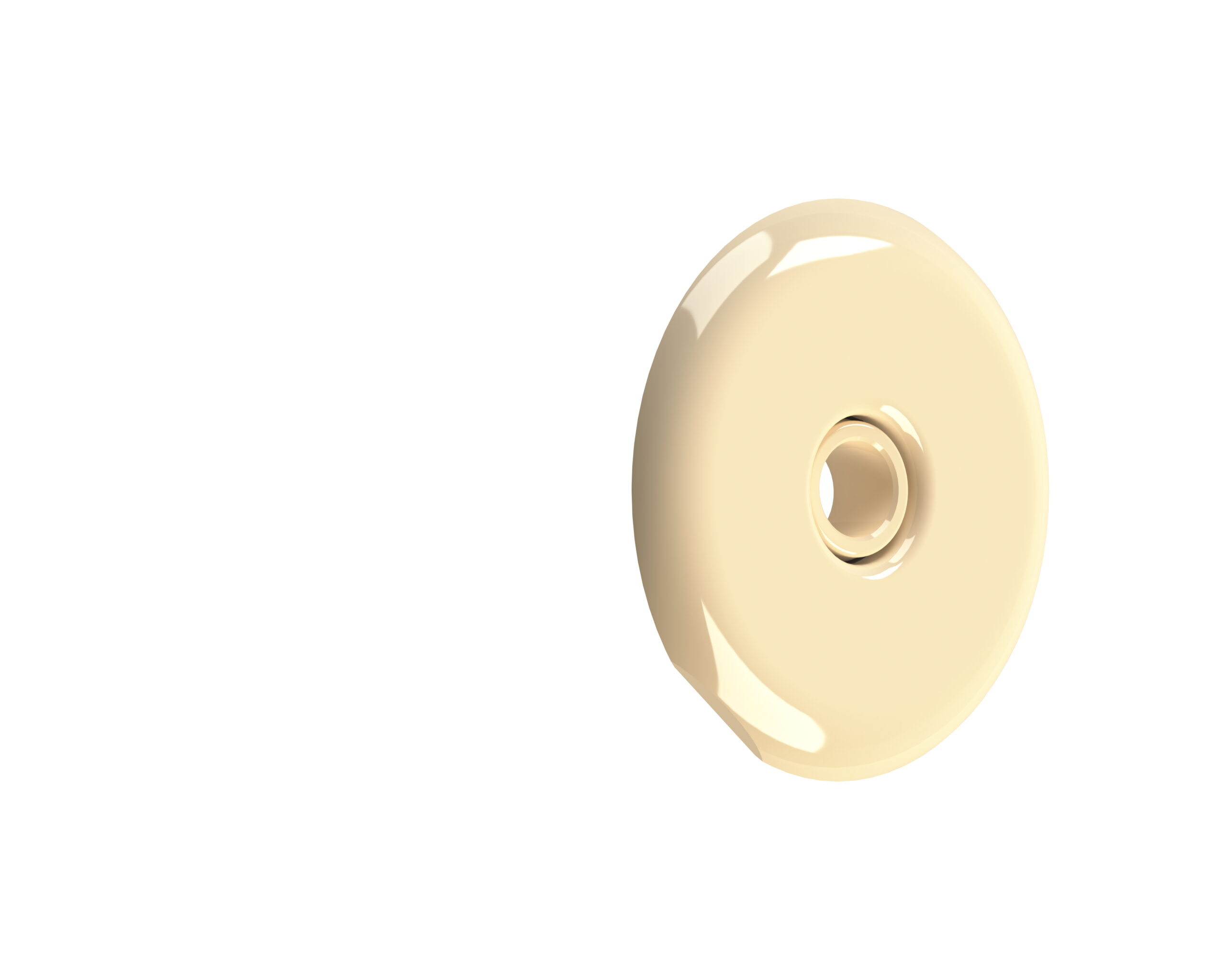

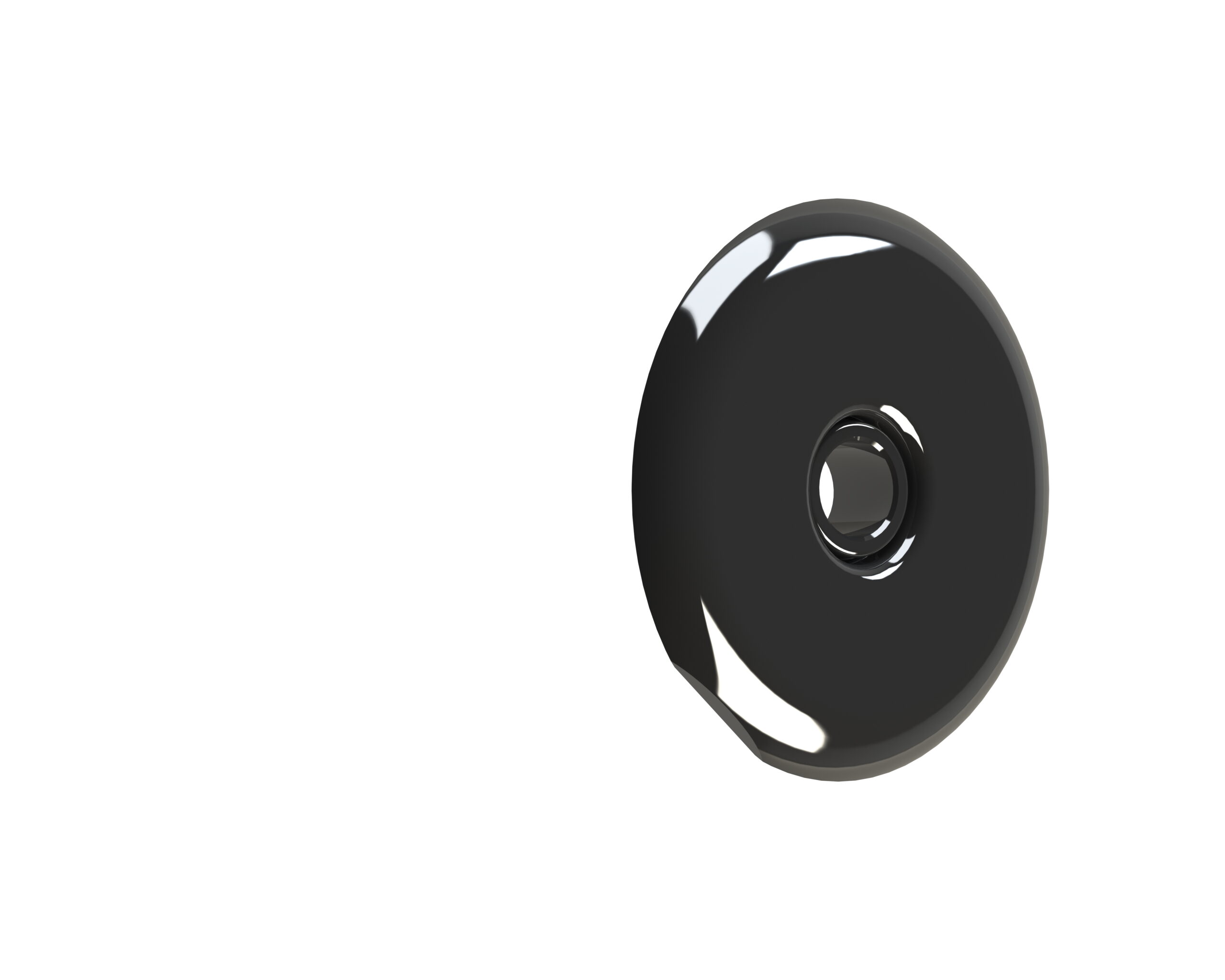

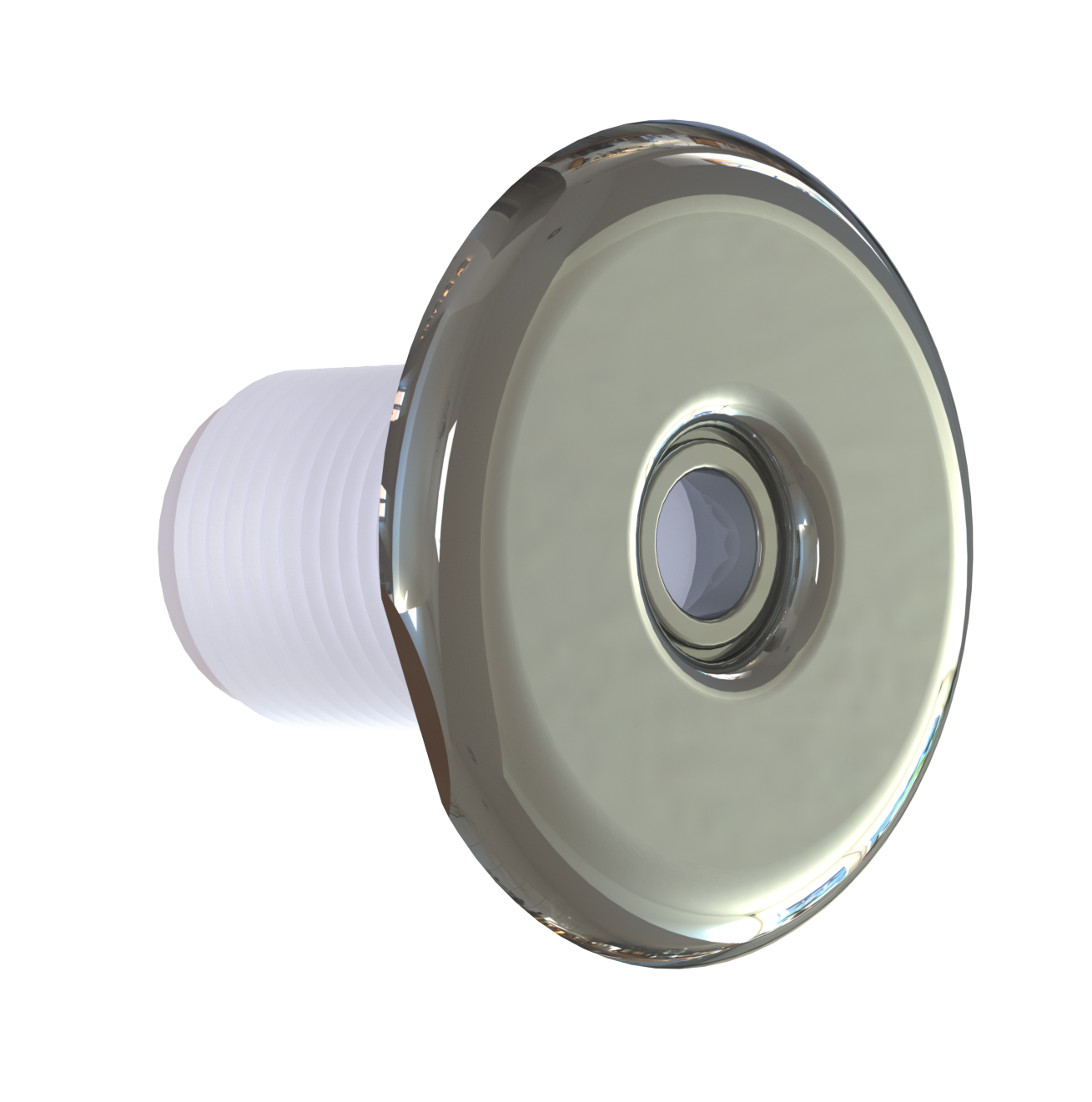

The MICRO series wall return inlet is composed of an ABS base, length 32 mm, and a Ø 60 mm finish in ABS | 5 colours or in AISI 316L stainless steel.
The swivel sphere fixing system, for tiled pools, allows slope variations of ±8° to be managed optimally (swivel sphere SUPPLIED). Simply provide a Ø 32 | PN 16 PVC pipe outlet at the design position: once the building and tiling work is completed, cut the pipe flush and glue the inlet with its swivel sphere directly inside it, adapting it to the slope and any finishing irregularities.
Maximum flow rate for an outlet flow velocity of 4 m/s: 0.8 m³/h.
