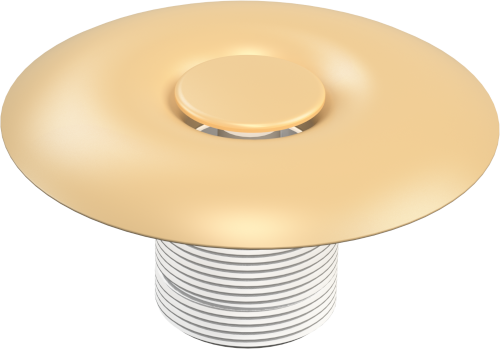

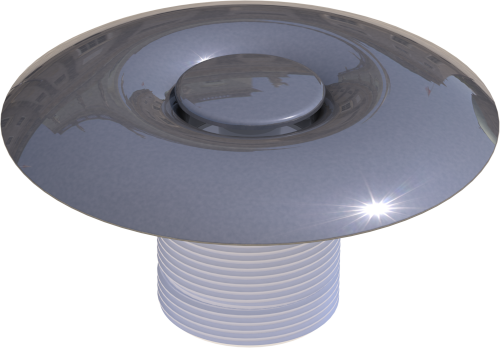

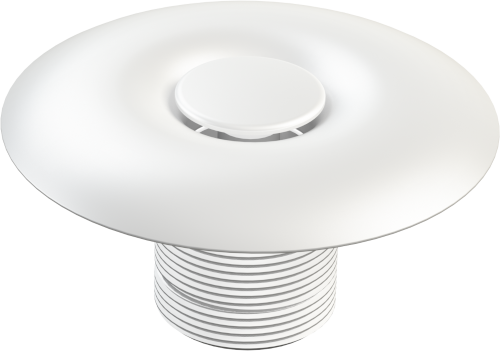

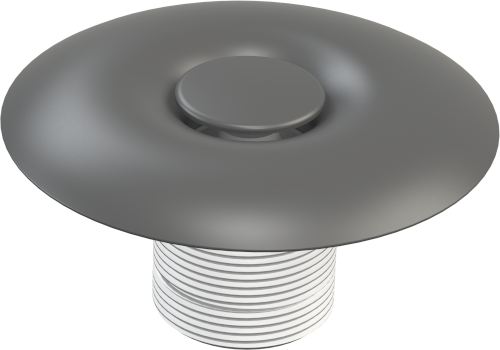

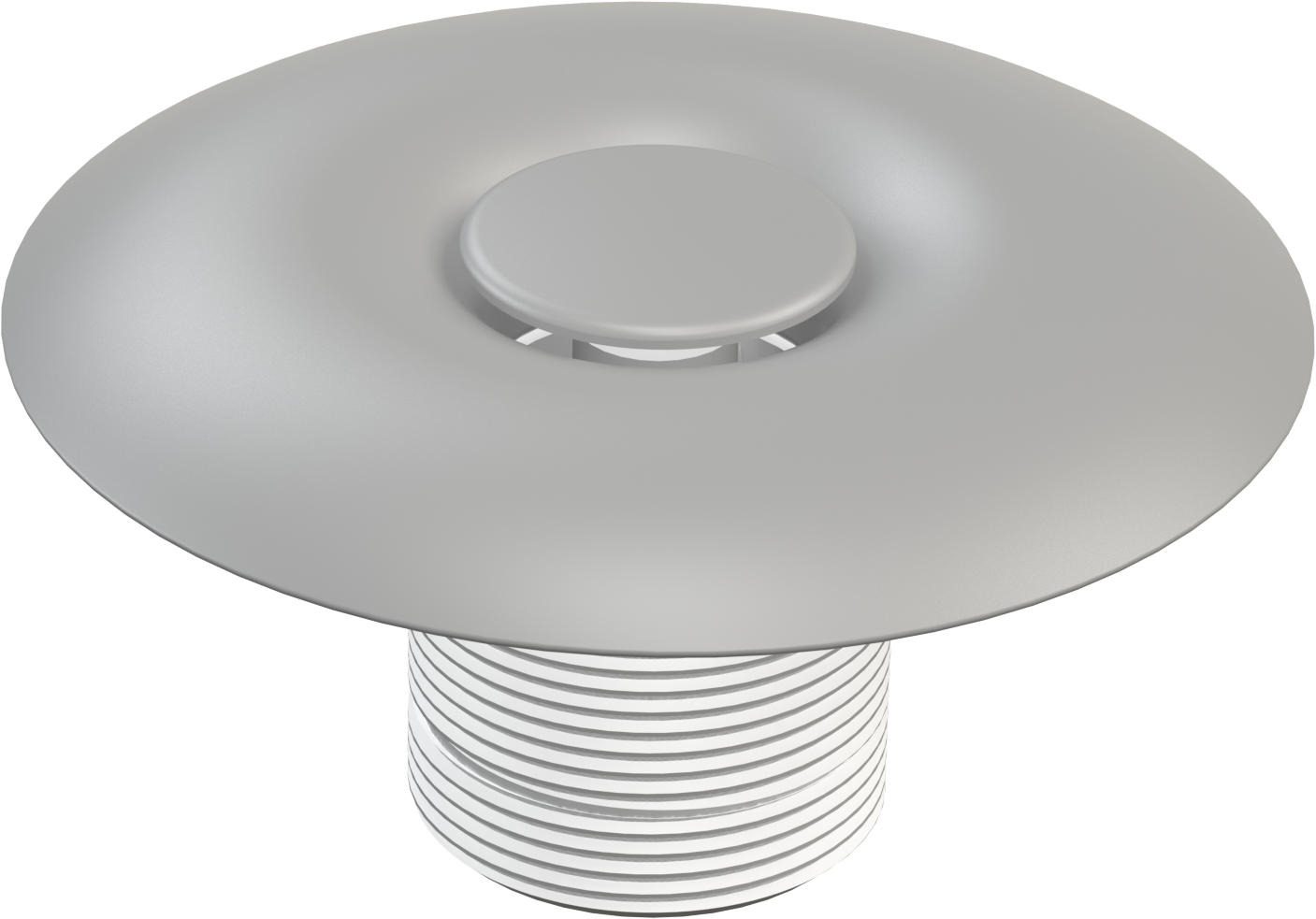

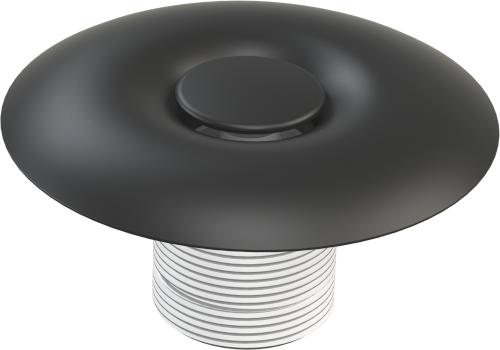

VARIOFLOW360 FLOOR INLET NOZZLE MAXI SERIES | PVC-LINED POOLS

Uniform water distribution
Inspired by the shapes of water, the VarioFlow360 floor inlet is a patented, revolutionary product that redefines pool water circulation. Its unrestricted 360° free flow exploits the Coandă effect, generating flows that adhere to the pool floor and reach every corner of the pool, while its refined geometric profile draws the upper fluid layers downward, creating strong passive circulation. The innovative self-regulating variable-flow outlet system maintains a constant outlet velocity as the flow rate changes, making VarioFlow360 ideal also for systems with variable-speed pumps.
Flow coverage up to Ø 5.60 m at a flow rate of 7 m³/h.

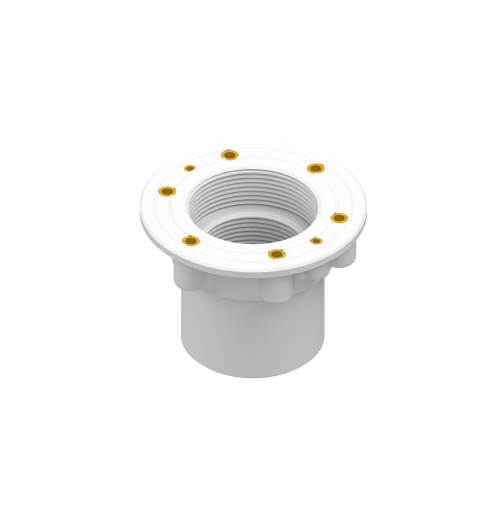

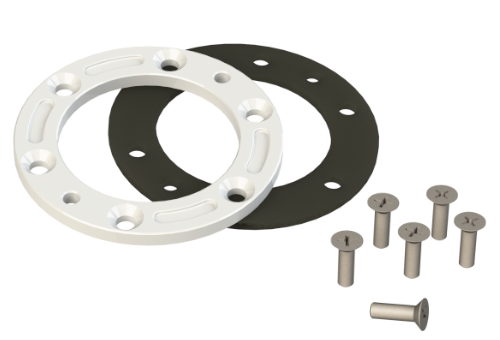

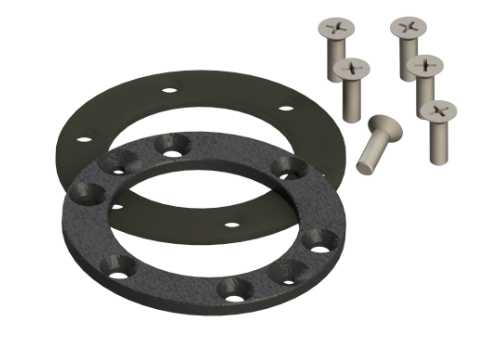

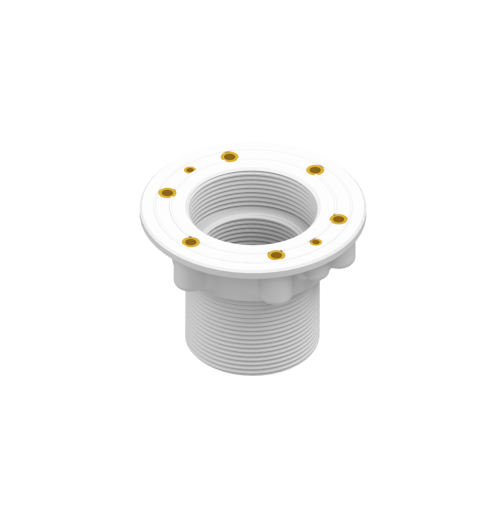

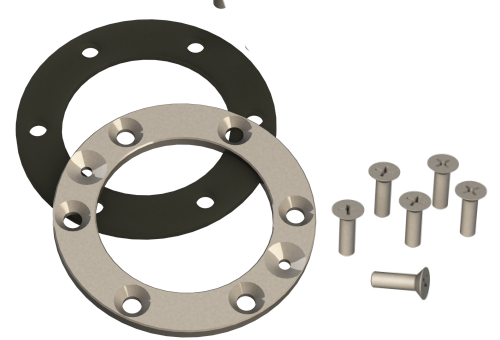

The system becomes flexible thanks to the MAXI series ABS wall body, available in two versions (glue-in Ø 63 mm | 2″ threaded), and to the liner set with special SALT PROTECTED treatment: components that separate the sealing function from the finishing function.
Water flow rate: 7 m³/h | Velocity 4 m/s. Minimum water depth for installation: 60 cm.
