MAIN DRAIN WITH STRAIGHT CONNECTION

Designed to ensure maximum safety and full compliance with current regulations, with flow rates of up to 32 m³/h: the ideal solution for high-performance public and private pool systems.
One body, two functions: the same product can be used either as a main drain or as a wall suction point for water features, massage systems or surge-tank suction lines.

COMPLIANT | ANTI-VORTEX | ANTI-VACUUM
With grille in ABS | 5 colours or in AISI 316Ti stainless steel SALT PROTECTED
PMAX 15 m³/h – 32 m³/h | VFLOW ≤ 0.5 m/s

Compliant with European Standards
UNI EN 16713-2 | UNI EN 13451-1 | UNI EN 13451-3

Comprising:

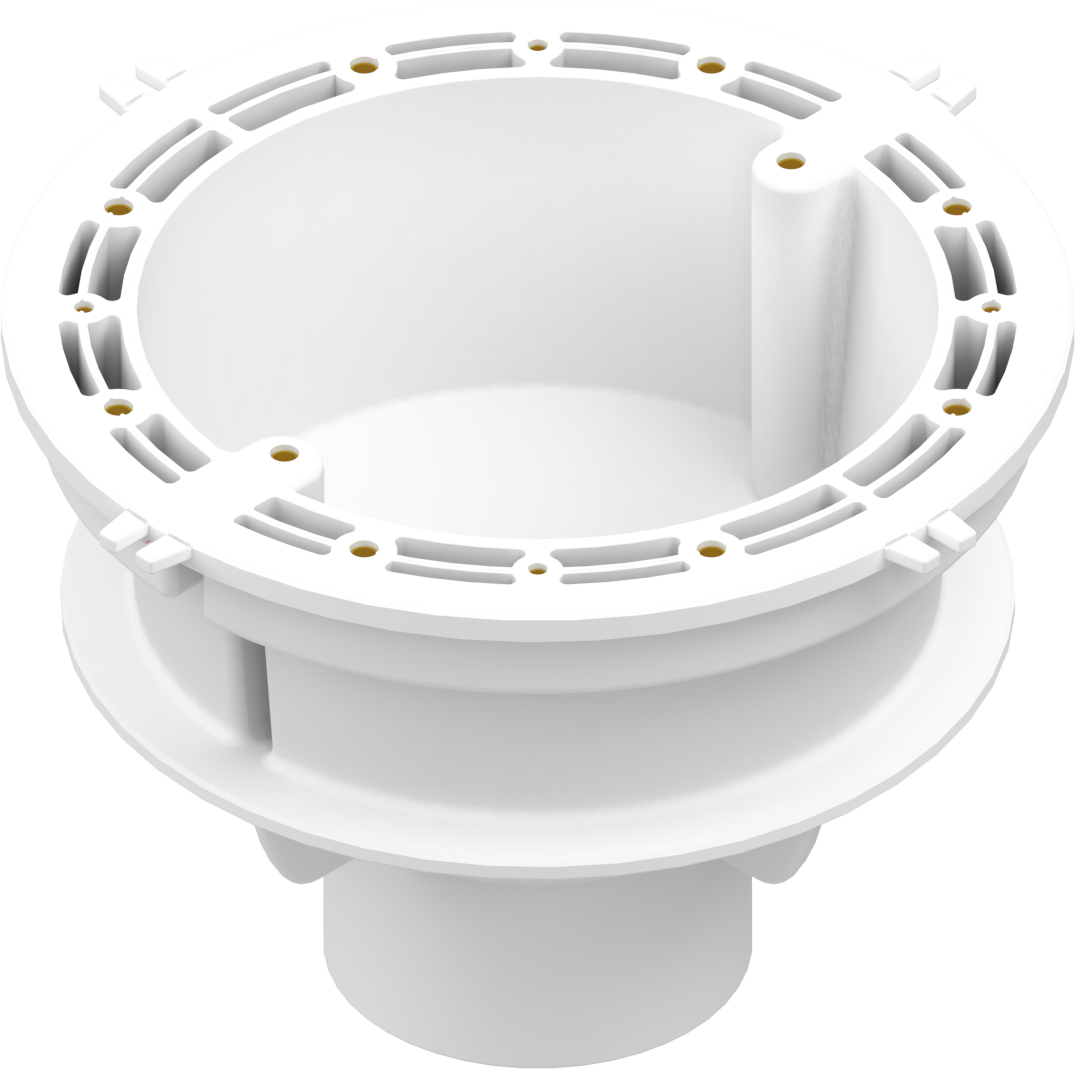

IN-WALL PART IN ABS | Straight connection
DN65 (Ø 75 mm F) | DN80 (Ø 90 mm M)
Ø 225 mm | H 164 mm
ABS in 2 colours: White | Dark grey

SAFETY GRILLE | Anti-vortex and anti-vacuum
15 m³/h suction grille: Ø 220 mm | H 12 mm (PMAX 15 m³/h | VFLOW ≤ 0.5 m/s)
32 m³/h suction grille: Ø 305 mm | H 28 mm (PMAX 32 m³/h | VFLOW ≤ 0.5 m/s)

Finish
ABS in 5 colours: White | Dark grey | Light grey | Black | Sand
AISI 316Ti stainless steel SALT PROTECTED with ABS frame
