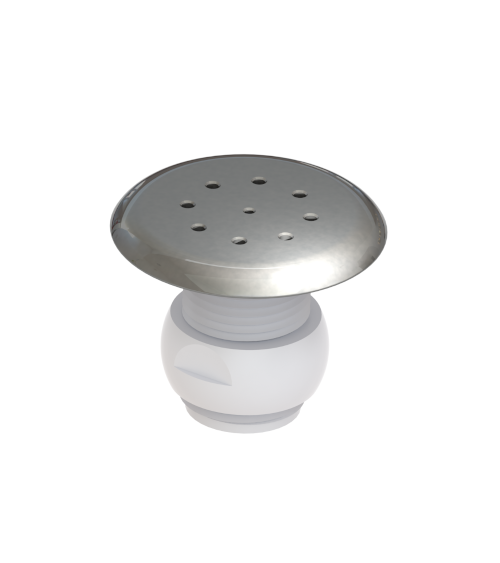

AIR NOZZLE MICRO SERIES | TILED POOLS

For easy installation!
This design allows the nozzle to be installed on floors with different slopes and compensates for any building errors or thickness differences when laying tiles or mosaic.
Simply provide a Ø 32 PN 16 PVC pipe outlet close to each nozzle: once the building and tiling work is completed, cut the pipe flush with the floor and glue the nozzle with its swivel sphere directly inside it, adapting it to the slope and any finishing irregularities.
Swivel sphere for gluing to Ø 32 | PN16 PVC pipe SUPPLIED.
Internal air flow adjustment | Nominal air flow rate: 3 m³/h.
