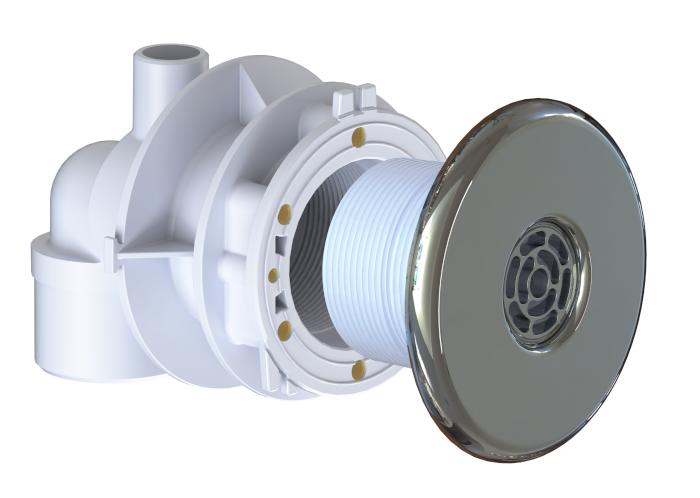

MASSAGE SYSTEM WATER | AIR Ø 50 MAXI SERIES | STAINLESS STEEL SALT PROTECTED

100% Made in Italy
Over 40 years of know-how in swimming-pool massage systems…
…for maximum performance in your pool

Technical features
Water connection: Ø 50 mm | Air connection: Ø 25 mm
Nozzle base in white ABS | Length 57.5 mm
Overall depth: 140 mm
Finish: Ø 100 mm with swivel sphere with 7 holes Ø 8 mm and 6 holes Ø 4 mm, in AISI 316L stainless steel SALT PROTECTED
The sphere can be converted into a single-outlet sphere Ø 33 mm for high flow rates
Suitable for use with Venturi systems
Recommended nominal water flow rate: 6 m³/h

Field of application
Tiled or PVC-lined pools | Prefabricated pools | Fibreglass pools | Stainless steel pools
