WALL RETURN INLET MEDIUM SERIES PLUS | TILED POOLS

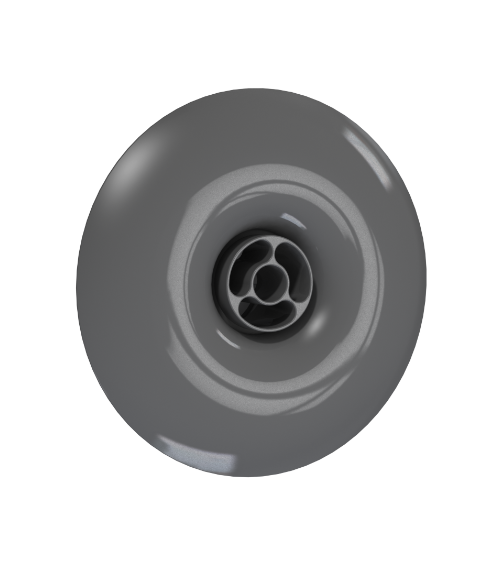

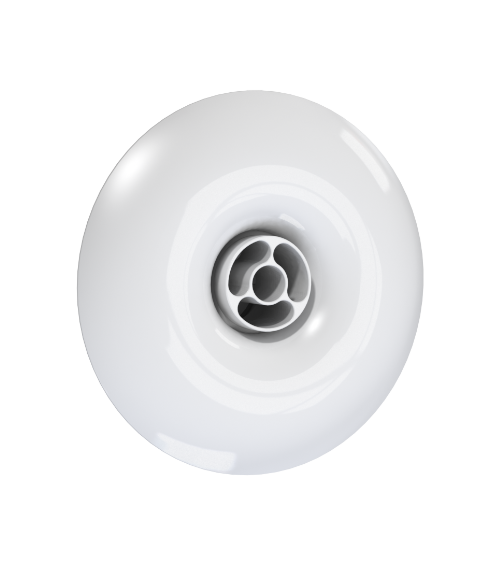

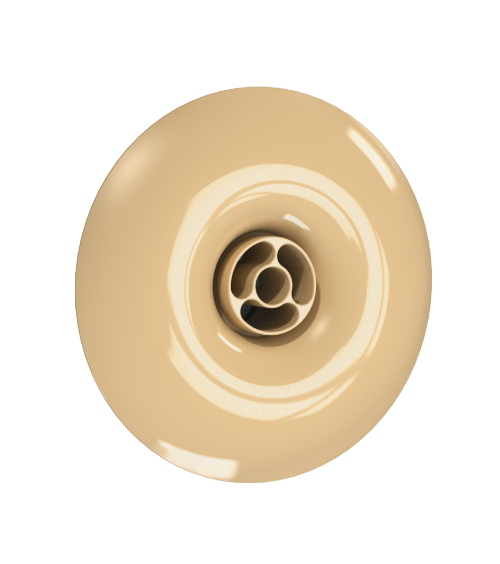

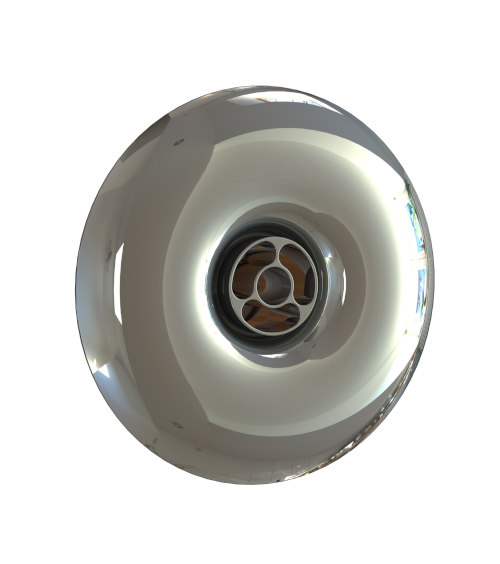

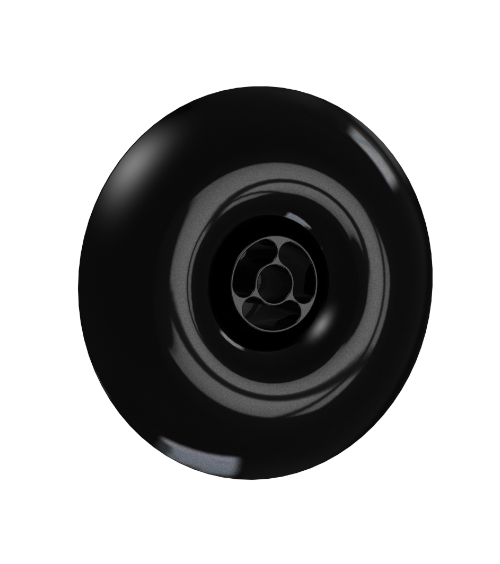

The MEDIUM series plus wall return inlet is composed of an ABS M36x2 base | Length 43 mm and an enlarged Ø 85 mm finish including an adjustable swivel sphere (±10°), in ABS | 5 colours or in AISI 316L stainless steel SALT PROTECTED: the larger finishing surface ensures wider coverage and an even more refined look.
The swivel sphere fixing system Ø 50 | PN10 | M36x2, for tiled pools, allows slope variations of ±8° to be managed optimally (swivel sphere NOT supplied). Simply provide a Ø 50 | PN 10 PVC pipe outlet at the design position: once the building and tiling work is completed, cut the pipe flush and glue the inlet with its swivel sphere directly inside it, adapting it to the slope and any finishing irregularities.
Maximum flow rate for an outlet flow velocity of 4 m/s: 3.0 m³/h.
