AIR NOZZLE MICRO SERIES | PVC-LINED POOLS

For easy installation in PVC-lined pools!
Simply provide Ø 50 female PVC fittings in the desired positions and glue in the GERIT MICRO series ABS wall bodies. Each wall body is supplied with a protective cover for the concrete casting and skim-coating phases.

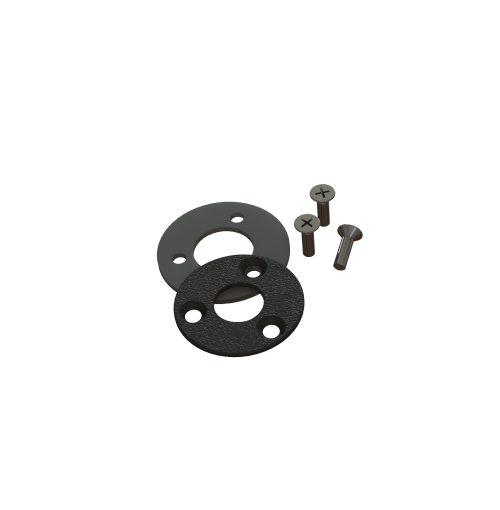

Before lining, remove the cover and place the gasket in its seat; flanging is carried out in complete safety thanks to the AISI 316L stainless steel flange and the 3 countersunk screws to be driven into the previously walled-in ABS body.

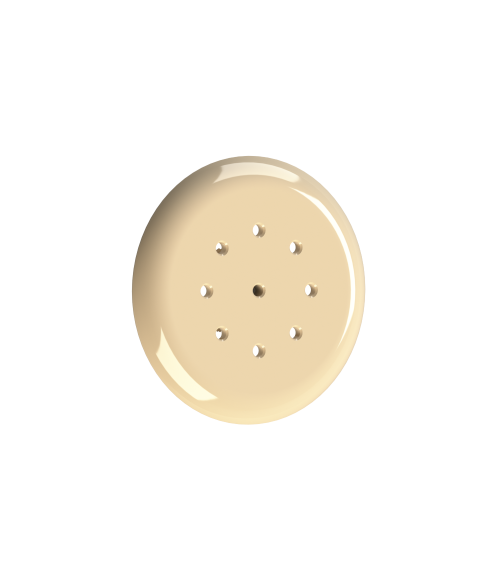

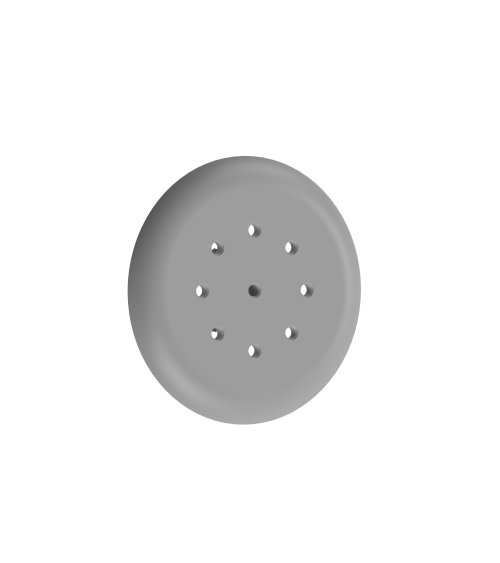

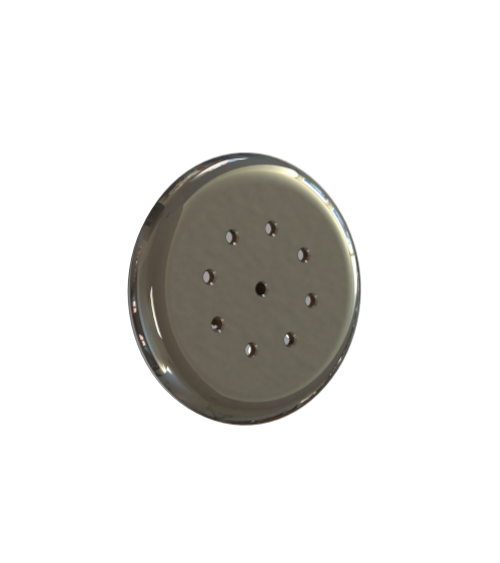

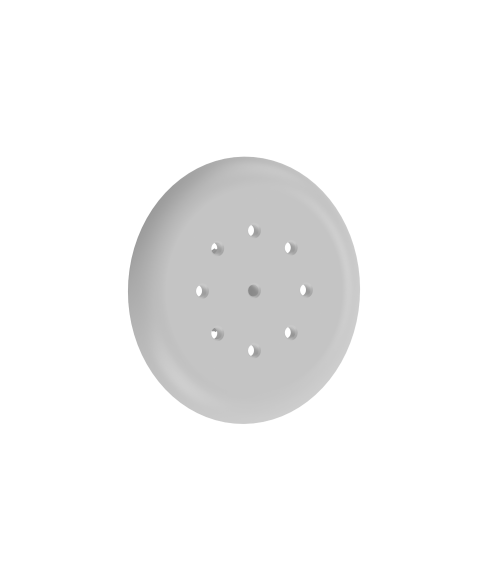

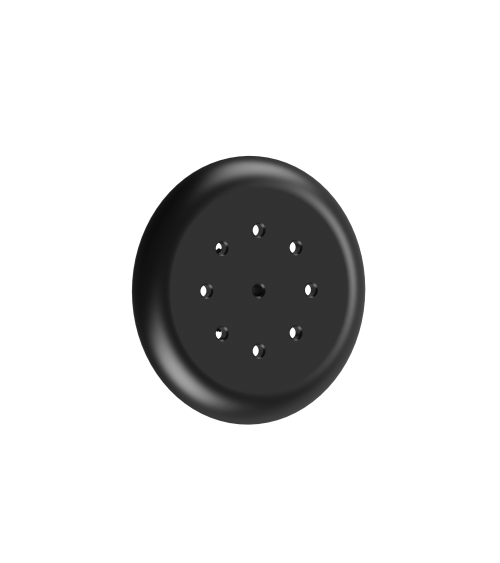

To make the operation easier, a centring tool is available, allowing the holes in the PVC lining to be made easily and precisely. Once the work is completed, the finishing cover is screwed on, concealing all flange components.
Nominal air flow rate: 3 m³/h.
