WALL RETURN INLET MAXI SERIES | TILED POOLS

New design for greater performance!

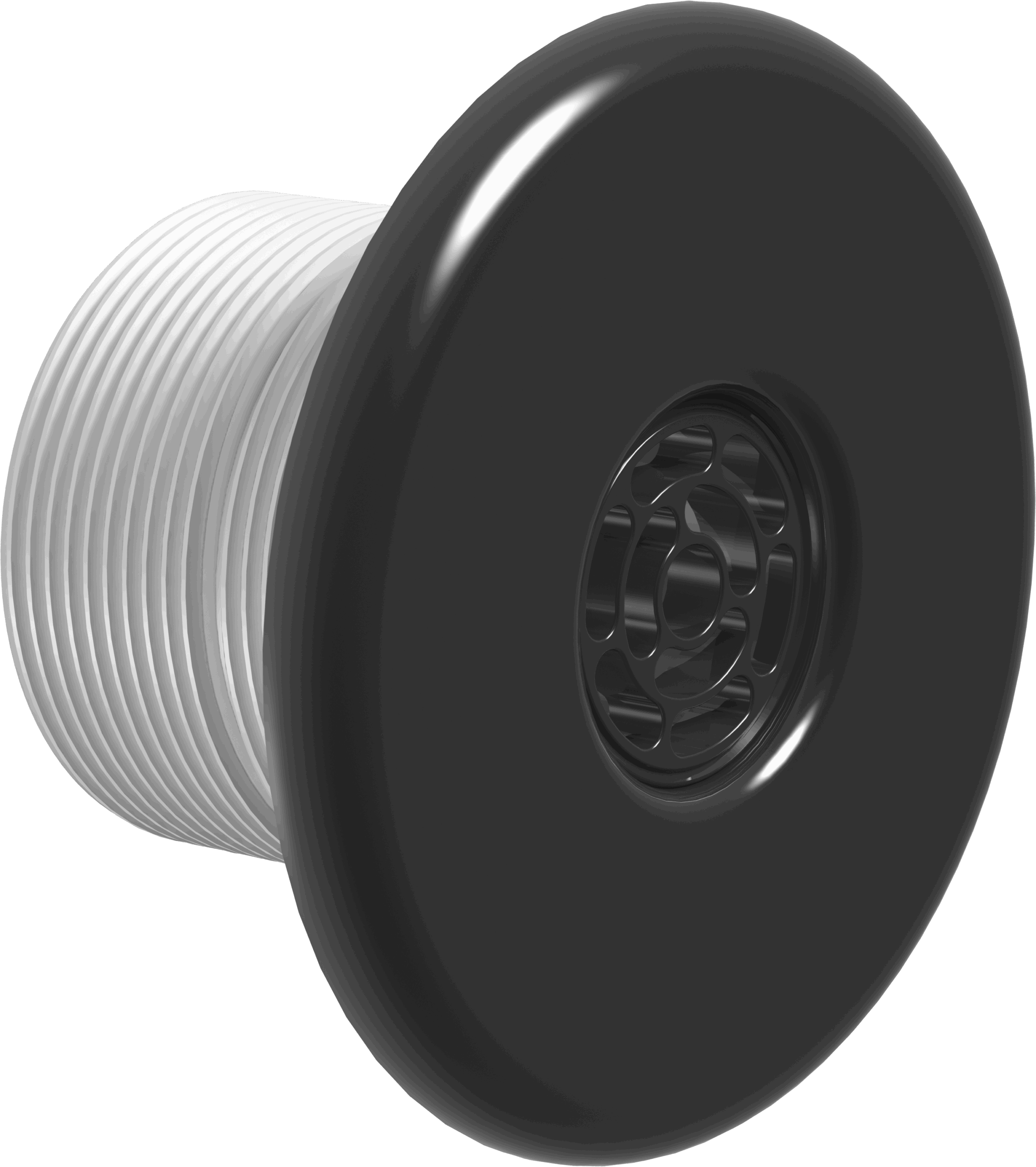

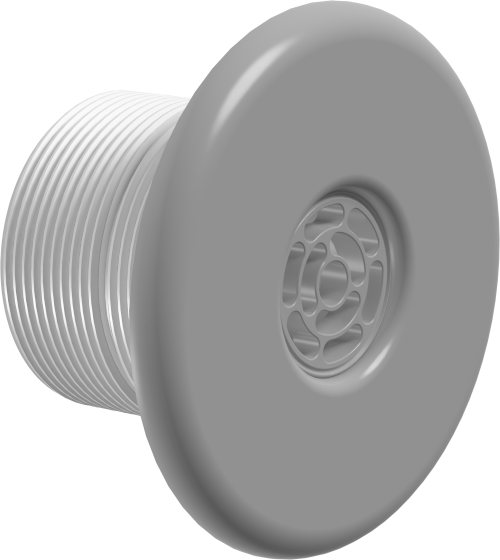

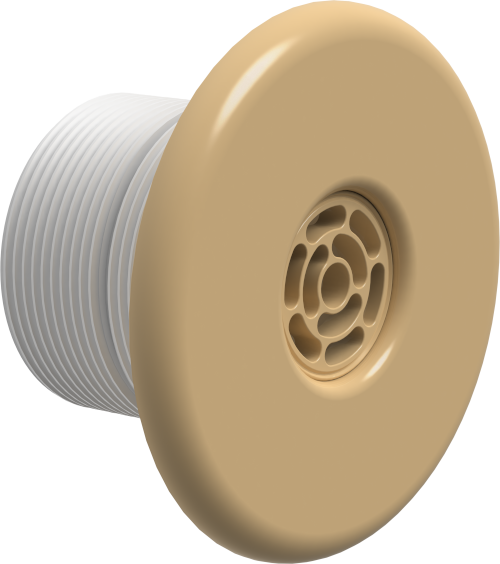

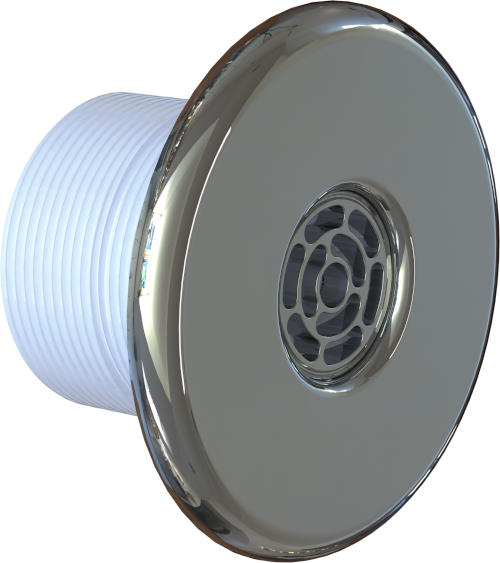

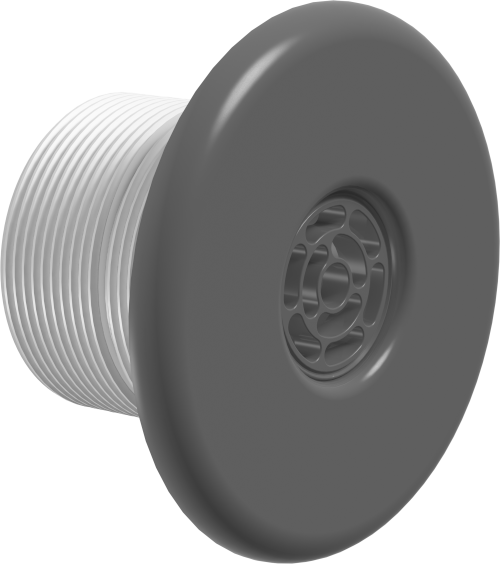

The MAXI series wall return inlet is composed of a 2″ male ABS base | Length 50 mm and a Ø 100 mm finish including an adjustable swivel sphere (±10°), in ABS | 5 colours or in AISI 316L stainless steel SALT PROTECTED.
The swivel sphere fixing system Ø 75 | PN10 | 2″, for tiled pools, allows slope variations of ±8° to be managed optimally (swivel sphere NOT supplied). Simply provide a Ø 75 | PN 10 PVC pipe outlet at the design position: once the building and tiling work is completed, cut the pipe flush and glue the inlet with its swivel sphere directly inside it, adapting it to the slope and any finishing irregularities.
Maximum flow rate for an outlet flow velocity of 4 m/s: 6.5 m³/h.
